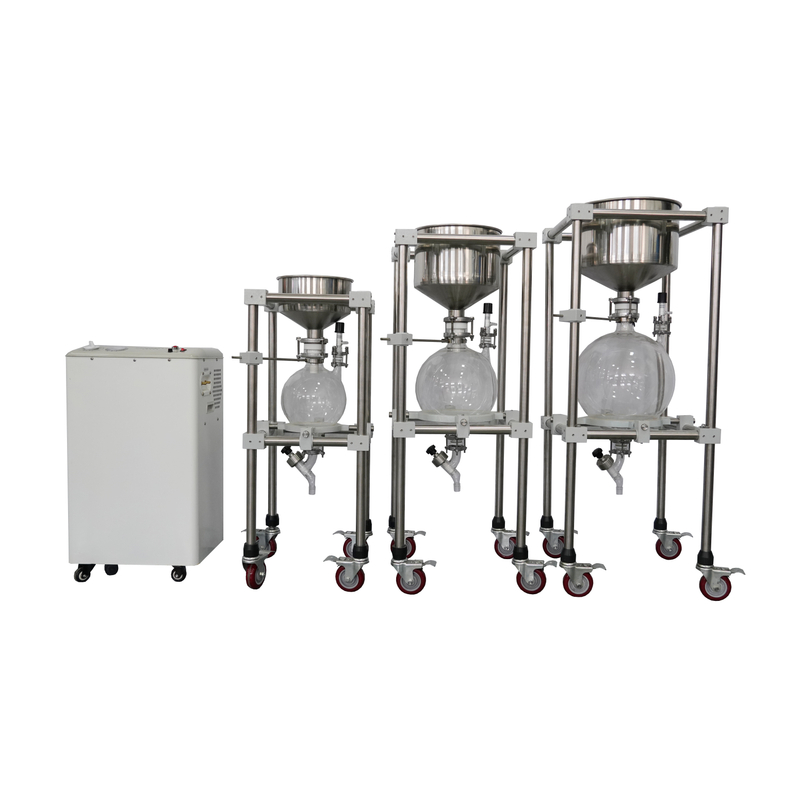

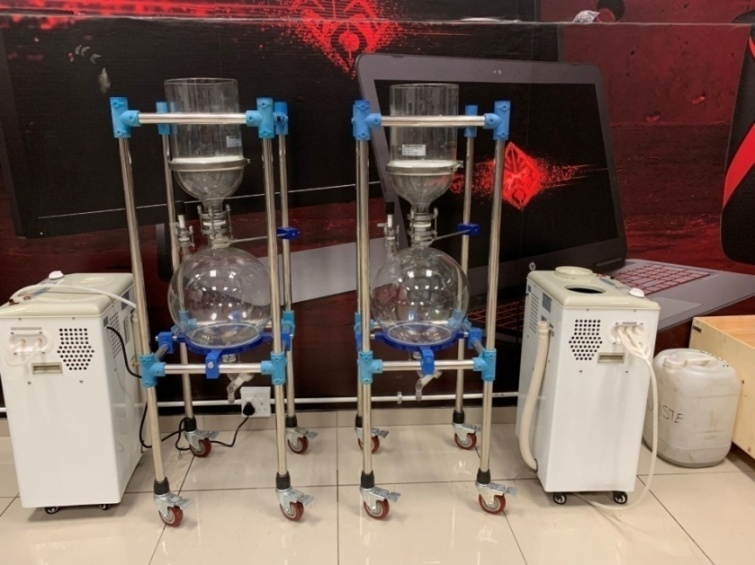

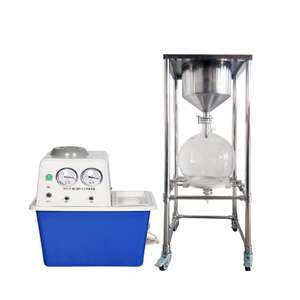

Vacuum Filter(10L)
To remove the wax and other impurities in the oil paste and alcohol mixture
Main Technical Parameters for Vacuum Filter 10L | ||
Item | Remarks | |
1 | Model | ZF-10L
|
2 | Hopper volume | 10L |
3 | Frame composition | Stainless steel |
4 | Glass composition | GG-17 |
5 | Pipe composition | 304 Stainless steel |
6 | Bottle capacity | Ball 10L |
7 | Hopper composition | Stainless steel |
8 | Mouth qty of bottle | three |
9 | Air purge unit | piston valve |
10 | Blowing way | Glass blowing valve/Flange end |
11 | Moving way | universal wheel with brake |
12 | Vacuum pump | Table water pump |
