Technical parameters

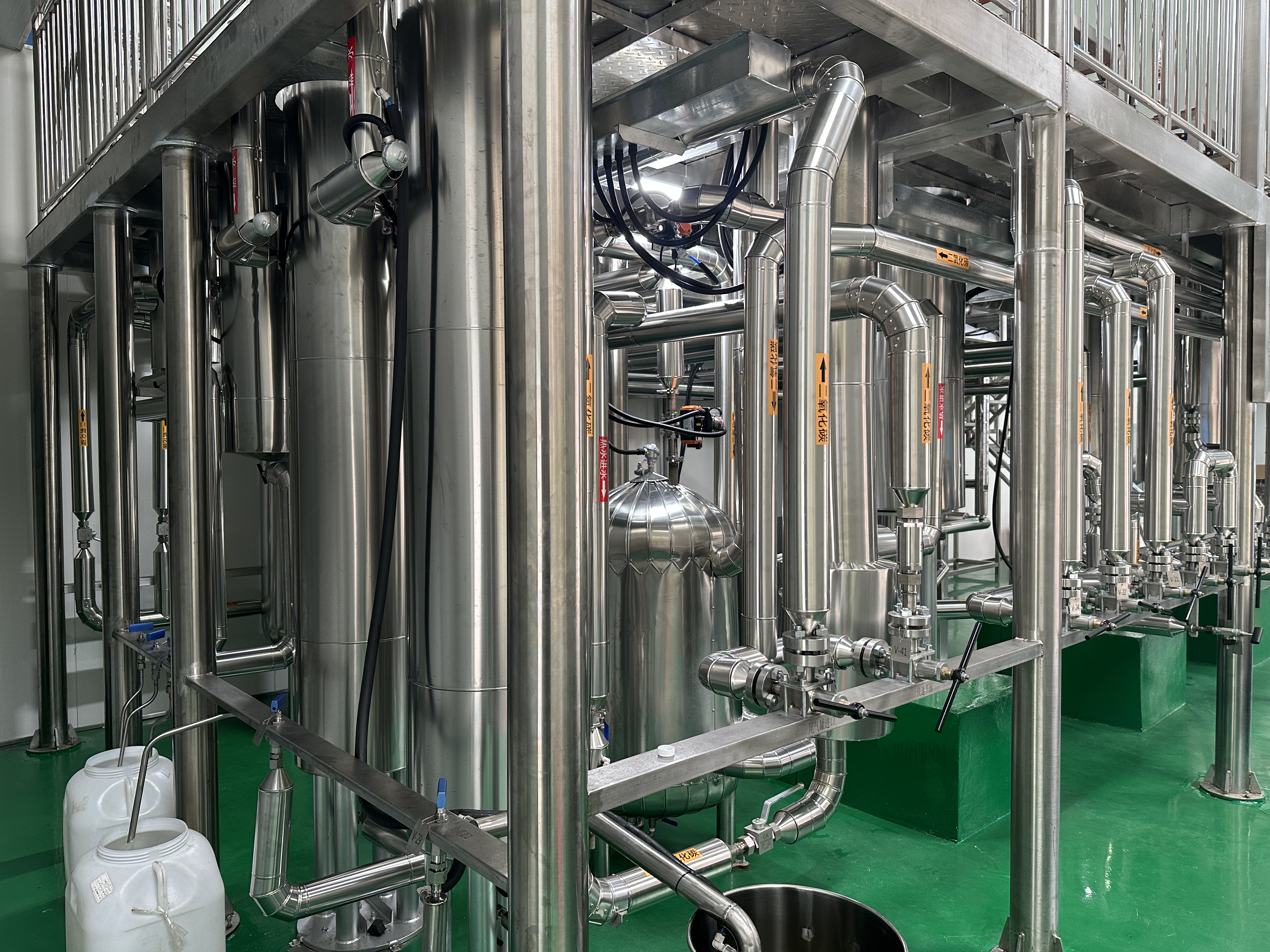

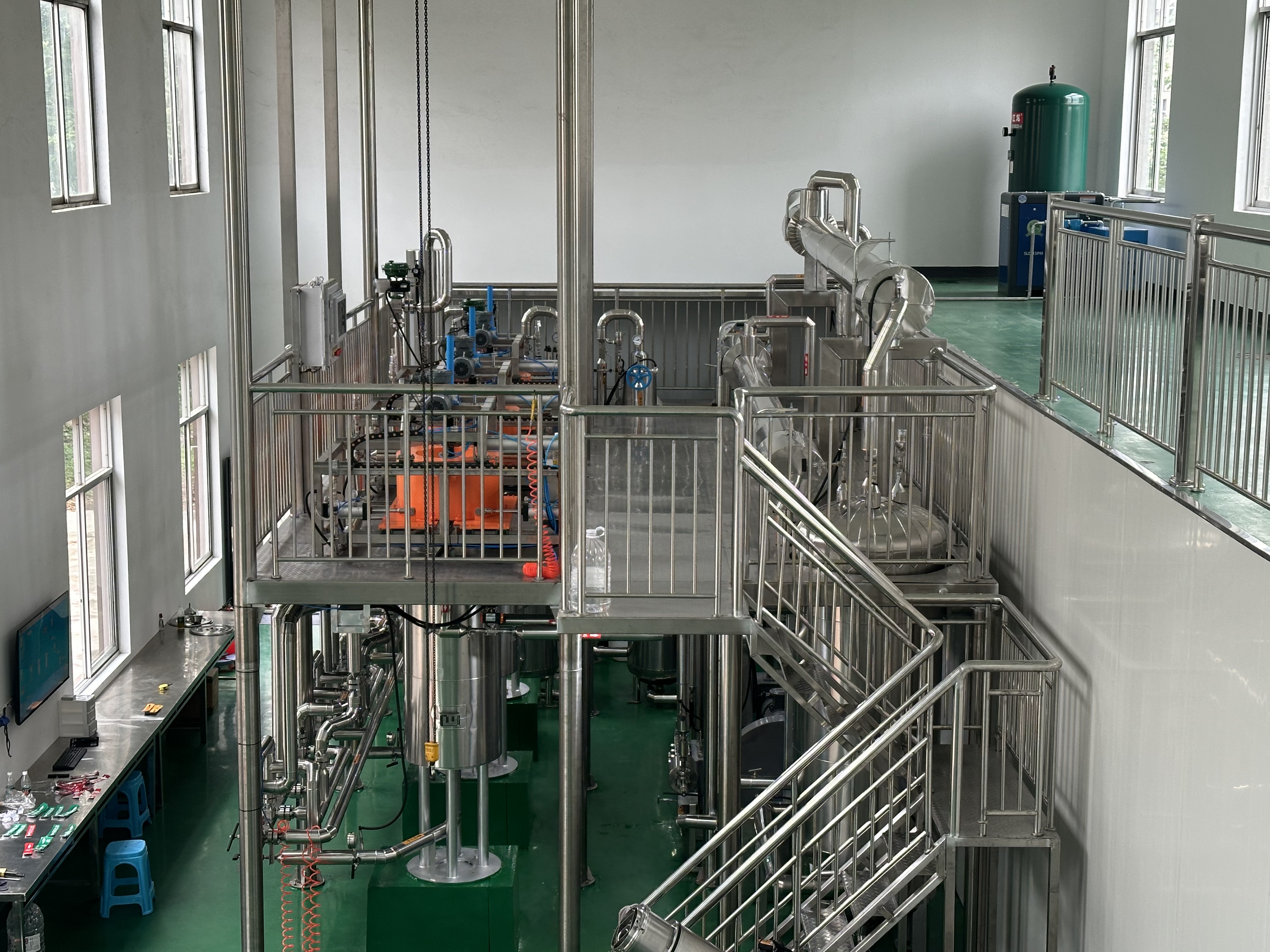

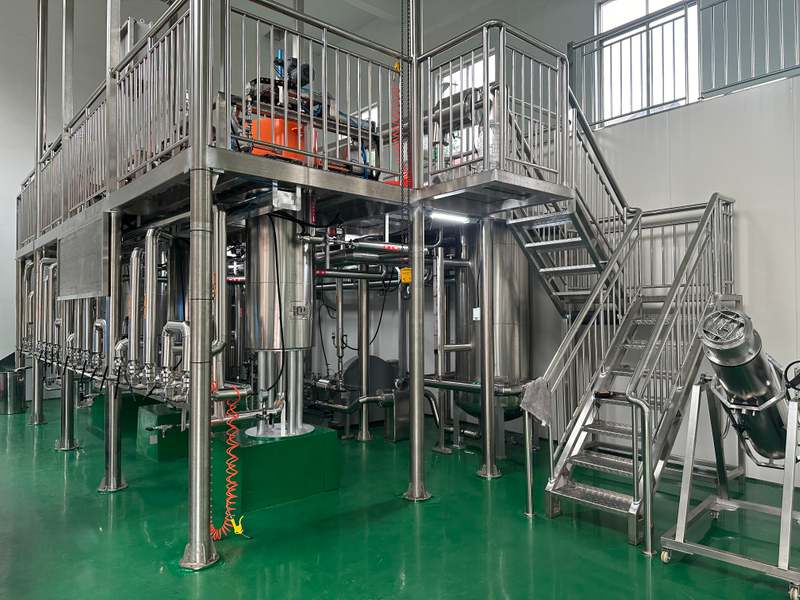

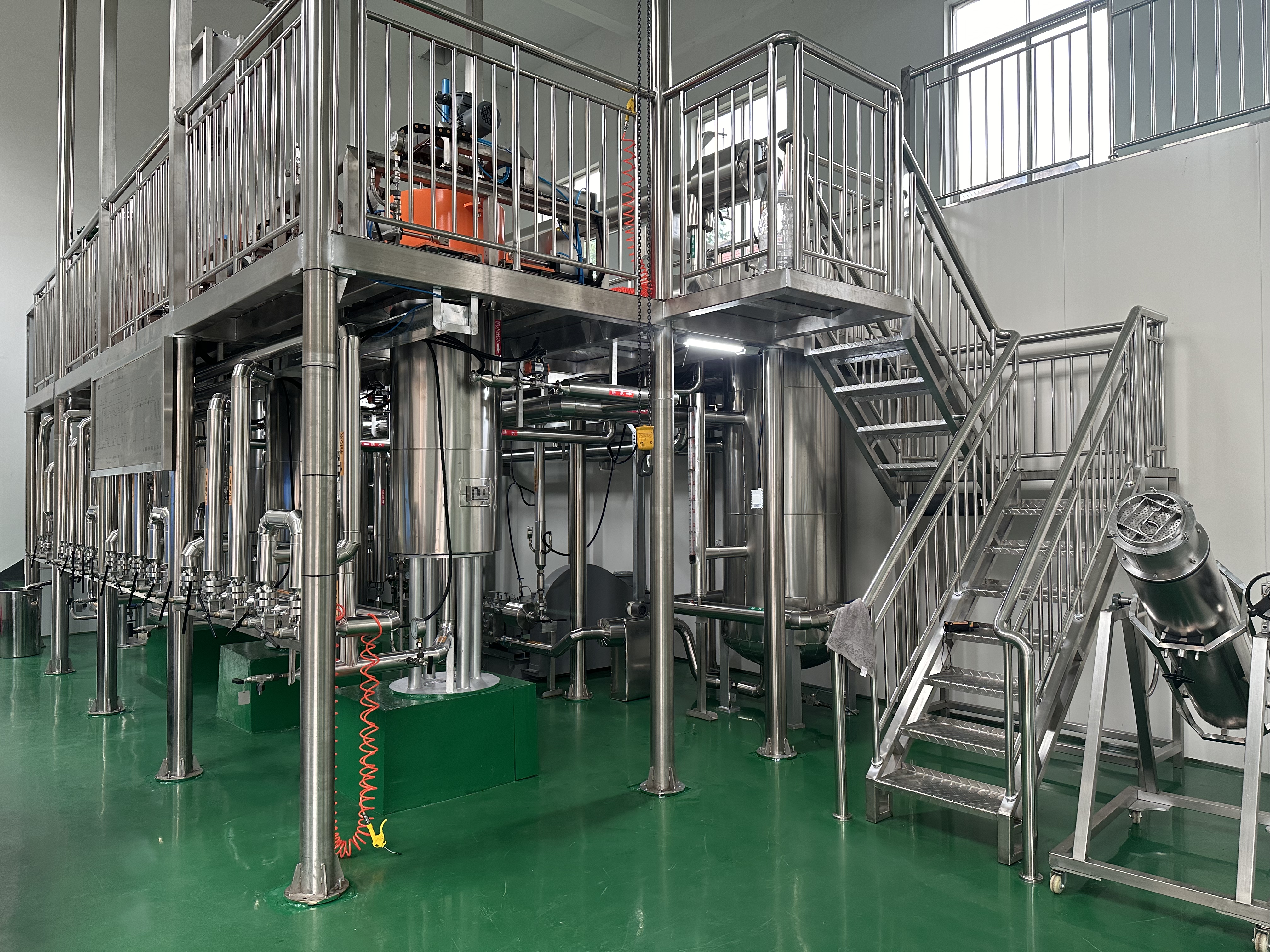

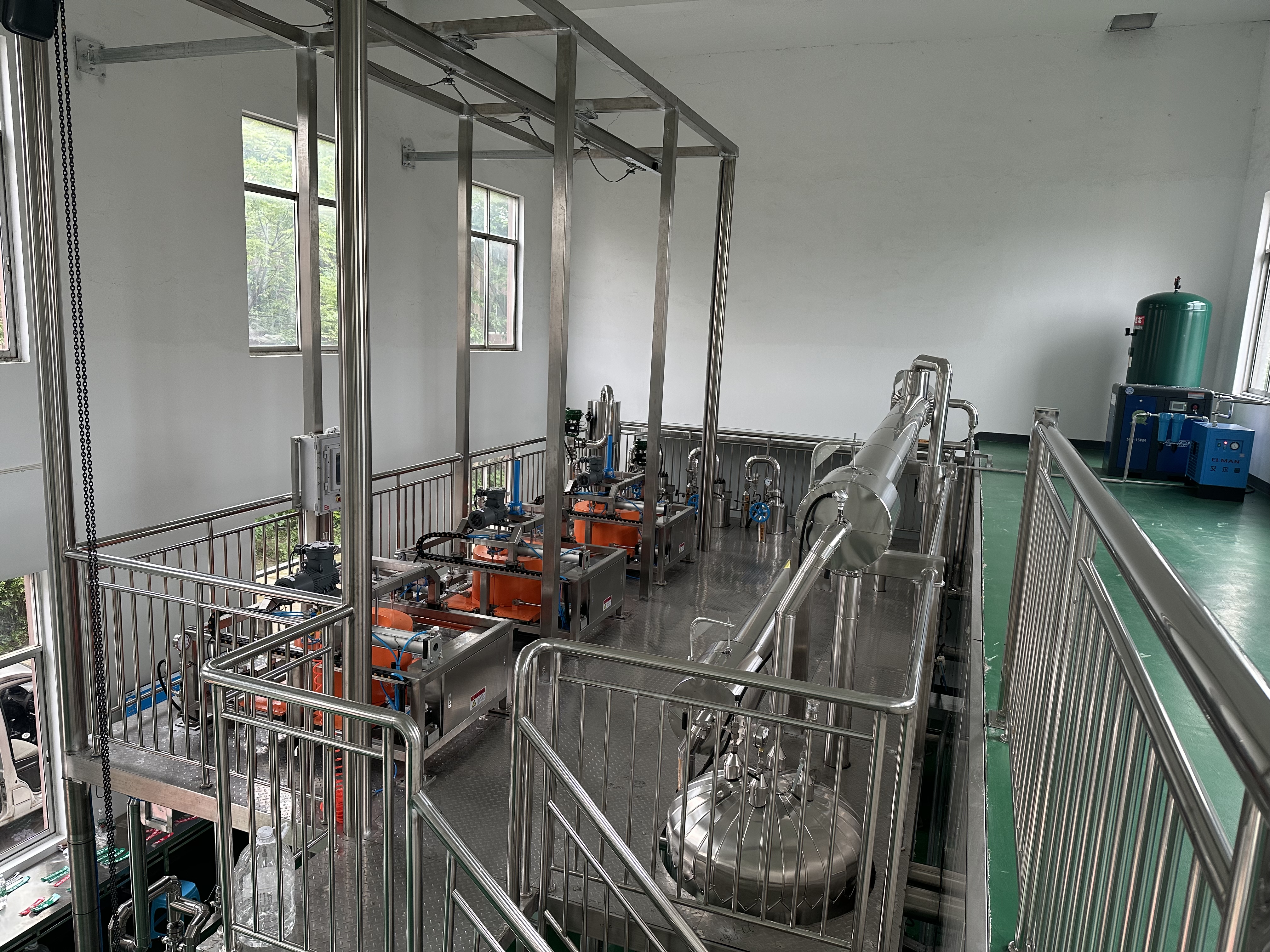

Main Technical Parameters of Supercritical Co2 extraction System 450L(150Lx3) | |||
Sn. | Name | Specification | QTY |
1 | Extraction vessels | Volume: 150L * 3 (Single vessel is 150L) Design pressure: 40MPa Maximum work pressure: 35MPa, Design temperature: 85℃ Maximum work temperature: 80℃ Material: Stainless steel 304 Equipped with jacket water circling heating system, temperature adjustable. | 3 |
2 | Separation 1 | Volume: 100L Design pressure: 25MPa Maximum work pressure: 18MPa, Design temperature: 85℃ Maximum work temperature: 80℃ Material: Stainless steel 304 Equipped with jacket water circling heating system, temperature adjustable. | 1 |
3 | Separation 2 | Volume: 100L Design pressure: 25MPa Maximum work pressure: 18MPa, Design temperature: 85℃ Maximum work temperature: 80℃ Material: Stainless steel 304 Equipped with jacket water circling heating system, temperature adjustable. | 1 |
4 | Cylinders | Material: Stainless steel 304 (SS316 optional if needed) Volume:120L Load of extraction raw materials | 4 |
5 | CO2 high pressure pump | Triple plunger pump, 1000L/h (frequency adjustable) To deliver CO2 into the system and increase the pressure | 1 |
6 | Co-solvent pump | 50L/h, to pump co-solvent into system | 1 |
7 | Water pumps | To pump water in tank into vessel jacket and circulated | sets |
8 | Air compressor | 0.7MPa, supply of compressed air | 1 |
9 | CO2 recovery pump | To recover CO2 which less than 6MPa | 1 |
10 | Chiller | Chilling gaseous CO2 into liquid CO2 and cool the main pump head | 1 |
11 | Heat exchange system | Material: 304 stainless steel, design pressure 40Mpa | 3 |
12 | Filter | Material: stainless steel 304 Volume: 30L Design pressure: 20Mpa | 2 |
13 | Mixer | Material: stainless steel 304 Volume: 30L Design pressure: 40Mpa | 1 |
14 | CO2 Storage Tank | Material: Stainless steel 304 Volume: 800L, Maximum working pressure does not exceed 8.5MPa Outside storage tank 5m3 (self provided) | 2 |
15 | CO2 Cylinder rack | Material: Stainless steel 304 , vertical or horizontal | 1 |
16 | Coal charger | To carriage material loading cylinders | 1 |
17 | Flow Meter | Flow range: 0-1000L/h (Display instantaneous flow) | 1 |
18 | Temperature control system | Temperature control range: room temperature ~ 85℃ adjustable Temperature control accuracy: ±1℃ | |
19 | Safety protection system | Extraction vessel, separation vessels, CO2 high pressure pump, storage tank are equipped with safety valves to prevent system overpressure. | |
20 | Pipeline valves | High pressure pipelines and valves, process water valves and pipelines, check valves, back pressure valves | |
21 | Equipment bracket | Material: Stainless steel 304 | 1 |
22 | Data acquisition and control system | Touch screen, control extraction and separation temperatures, start and stop of CO2 high pressure pump and co-solvent pump, data storage and output. | 1 |
Optional | Automatic pressure regulators | Automatic regulation of extraction and separation pressure | 2 |
