Technical parameters

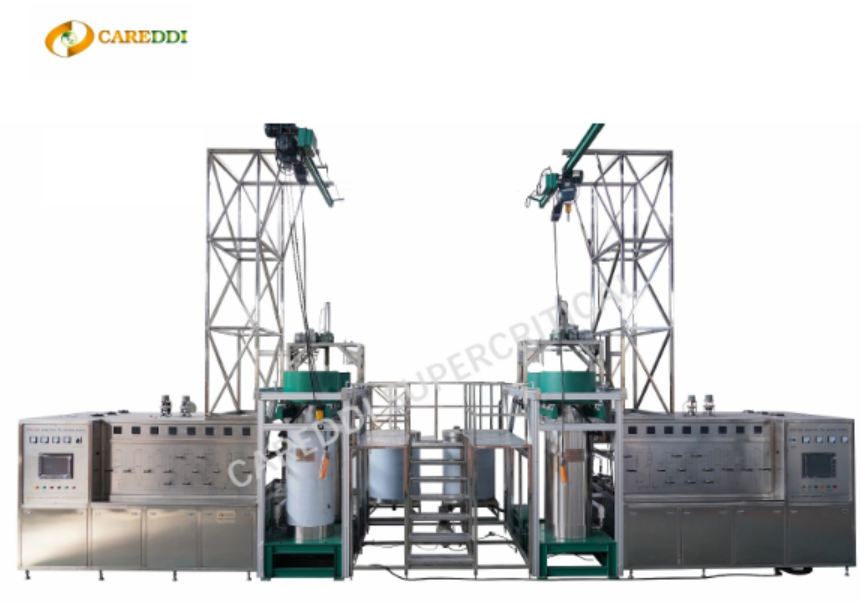

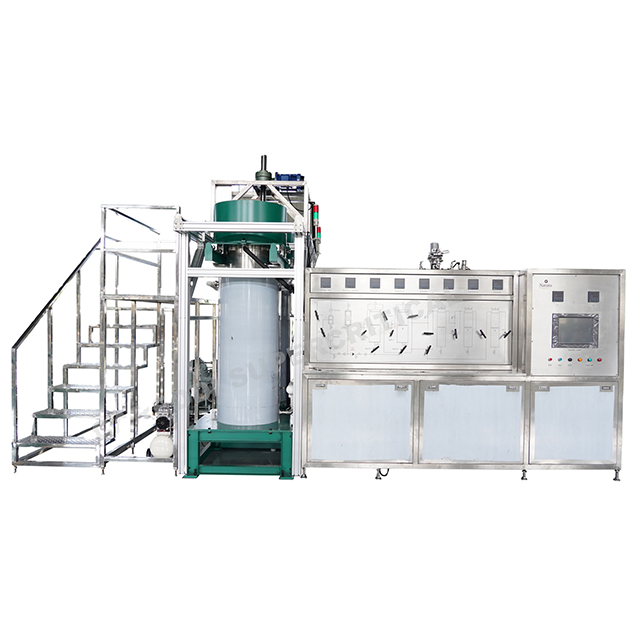

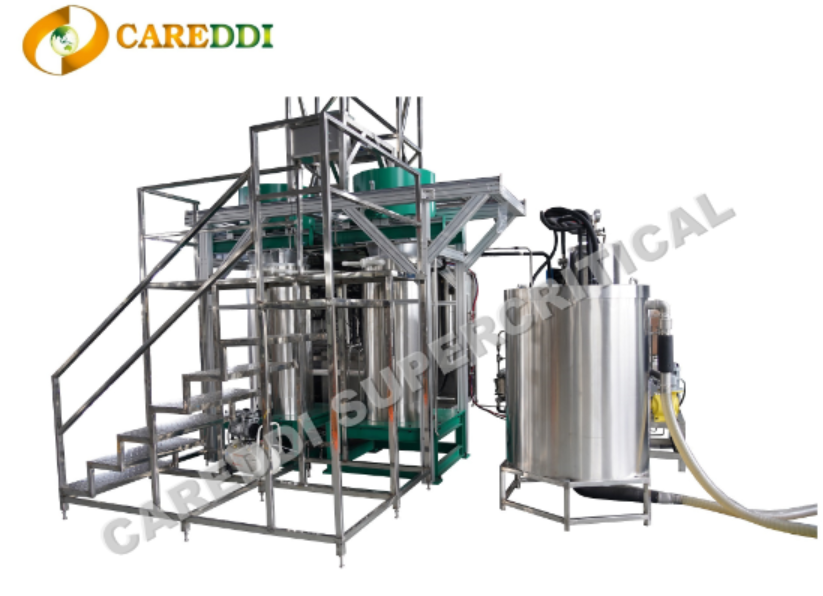

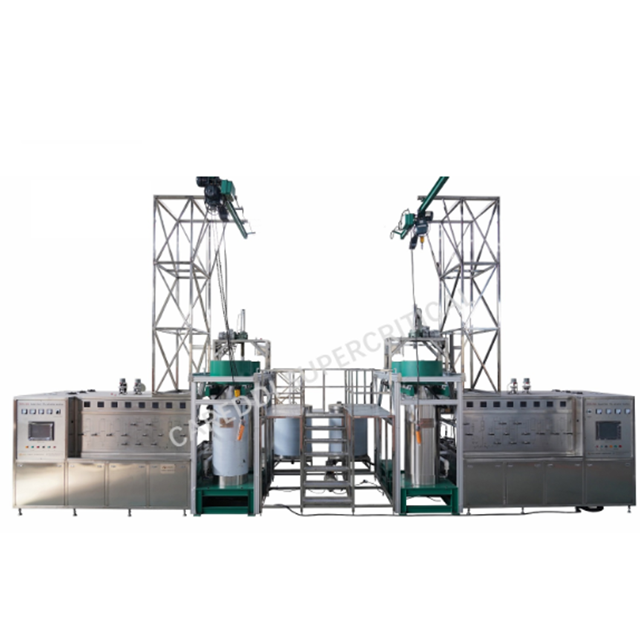

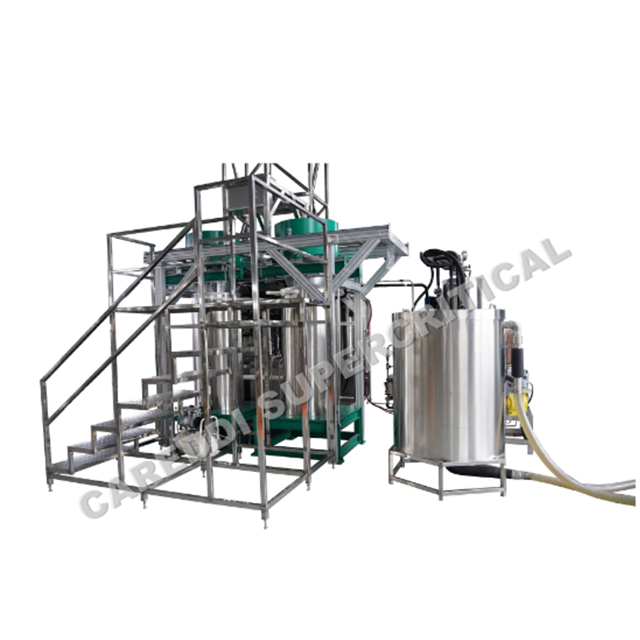

Main Technical Parameters of Supercritical Co2 extraction System 300L(150Lx2) | |||
Sn. | Part Description | QTY | Technical Parameters |
1 | Extraction Vessel | 2 | Volume: 150L + 150L Designed pressure: 40MPa Maximum work pressure: 38MPa Material: Stainless steel 304 Equipped with jacket water circling heating system, temperature adjustable, equipped with material barrel for both liquid and solid material |
2 | Material Cylinder | 3 | Material: Stainless steel 304 |
3 | Separation Vessel | 3 | Volume: Separation Vessel 1: 27Liter Separation Vessel 2: 17Liter Separation Vessel 3: 17Liter Maximum work pressure: 25MPa Material: Stainless Steel 304 Equipped with jacket water circling heating system, temperature adjustable |
4 | CO2 High pressure pump | 1 | Triple plunger pump, flow rate: 1000L/H (frequency adjustable) Maximum work pressure: 40MPa, pump head with cooling system |
5 | Solvent pump | 1 | Flow rate: 0.25-20L/H (frequency adjustable) Maximum work pressure: 40MPa |
6 | CO2 Recovery system | 1 | |
7 | Cooling system | 1 | Cooling capacity: 20000Kcal/h (air cooling) Temperature range: -5℃～+5℃ (meet process requirement) |
8 | Heat exchange system | 5 | Material: Stainless steel 304 Type: Φ14/40Mpa, Φ18/30Mpa With circulating water jacket heating system, adjustable temperature |
9 | Purification system | 1 | Volume: 5Liter Material: Stainless steel 304 Maximum work pressure: 16MPa |
10 | CO2 Storage tank | 1 | Volume: 102Liter Material: Stainless steel 304 Maximum work pressure: 8MPa |
11 | Flow rate meter | 1 | 1200/16MPa Digital indicator indicate both instant flow rate and accumulation |
12 | Temperature control system | 5 | Temperature range: Room temperature~85℃ adjustable Accuracy: ±1℃ |
13 | Pressure control system | 2 | Pressure gauge at high pressure pump outlet, overpressure protection. |
14 | Computerized touch screen | 1 | |
15 | Siemens PLC | 1 | |
16 | Safety valves | 6 | Safety valves at extraction vessels, separation vessels, overpressure automatic relief. |
17 | Over-pressure gauge | 1 | Pressure gauge at high pressure pump outlet, overpressure protection. |
18 | Control panel | 1 | Material: Stainless steel 304 |
19 | Main Machine frame & Operation desk | 1 | Material: Stainless steel 304 |
20 | Operation plat form | 1 | Material: Carbon steel |
21 | Quick opening structure | 2 | Material: Stainless steel 304 |
22 | Hoist | 1 | Electric hoist |
23 | Pipelines | 1 | Valves, fittings: DW14, DW18 All parts connected with fluid material are made by 1Cr18Ni9Ti Stainless steel. |
