Short Path Distillation System (SPD-100 Model)

1

FMD-100

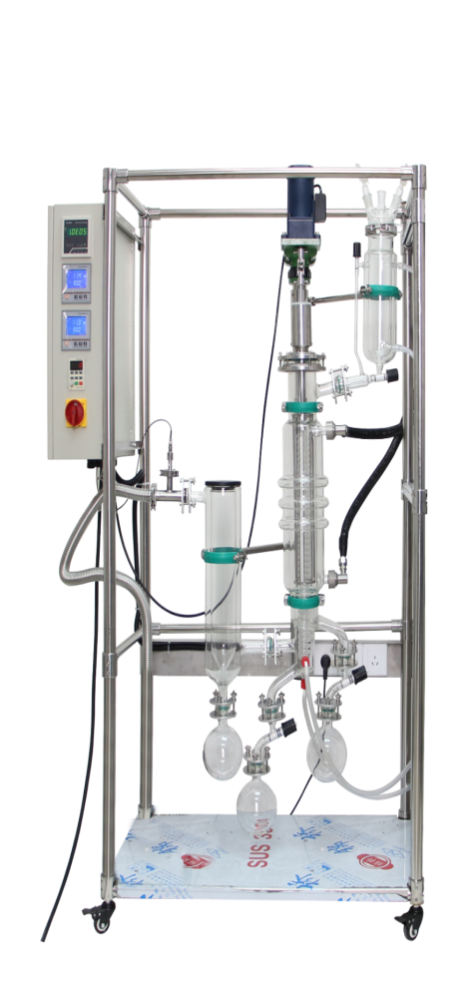

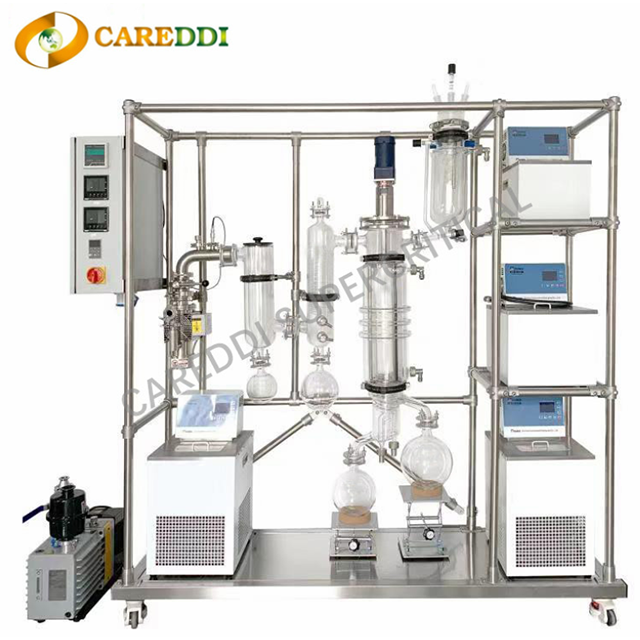

Main Components

1. Jacketed Glass Barrel with Internal Cooling Condenser

Diameter: 100mm

Effective Evaporation Area: 0.15m2

Processing Rate: 500-750 gram/hour

2. Jacketed Feeding Vessel with Lid

Volume: 1.8L

# of Ports on the Lid: 3 Ports; Size: 24/40

Valve Material: PTFE

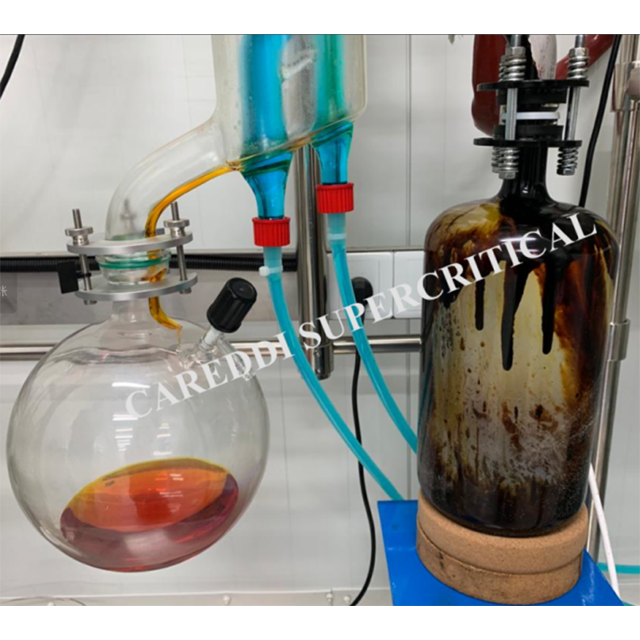

3. Distillate Receiving Flask

Volume: 1L; Port: Spherical Joint

4. Residue Receiving Flask

Volume: 1L; Port: Spherical Joint

5. Cold Trap with 1L Collection Flask

6. Wiper Material: Stainless Steel 316L

Blade Material: PTFE

7. Control System

Digital High Vacuum Gauge (0.01pa-1atm), Pirani Type

VFD Speed Controller for Stirring Motor, Motor Power:120W

Two Temperature Controllers for Heating Tapes

Electricity: 220V,single-phase

8. Support Frame: Stainless Steel 304

Supporting equipment for FMD-100 molecular distiller

1

GX-2005

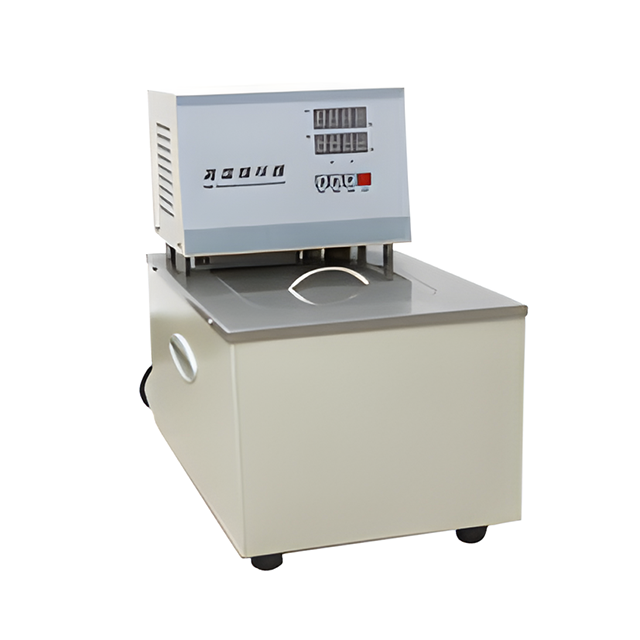

Heating Circulator for Feeding Vessel

Reservoir Volume: 5L

Temperature Range: RT-300℃

Pump Rate: 8L/min

Heating power: 1.6kW

Electricity:220V

2

GX-2010

Heating Circulator for jacketed glass barrel

Reservoir Volume: 10L

Temperature Range: RT-300℃

Pump Rate: 15L/min

Heating power: 2.1kW

Electricity: 220V

3

The processing capacity

Heating/cooling Circulator for internal condenser

Reservoir Volume: 5L

Temperature Range: 0-100℃

Pump Rate: 15L/min

Heating power: 1.8Kw

Electricity: 220V, single-phase

4

YHX-16

Vacuum pump

Pump Rate: 9CFM

Oil Consumption:1.5L

Ultimate Partial Pressure: <4x10-4mbar

Rotating Speed: 1420r/min

Motor Power: 0.55kW. 0.7HP

Electricity: 220V, Single/3P

5

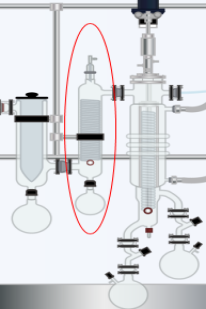

Additional external (Terpenes) condenser between the jacketed barrel and cold trap

6

YHLT10/30

Supporting chiller for external condenser (YHLT10/30)                                                                     Bath volmue:10L                                                                                                                                                  Lowest temp:-32℃                                                                                                                      Pumprate:20L/min                                                                                                                               Electricity: 220V
