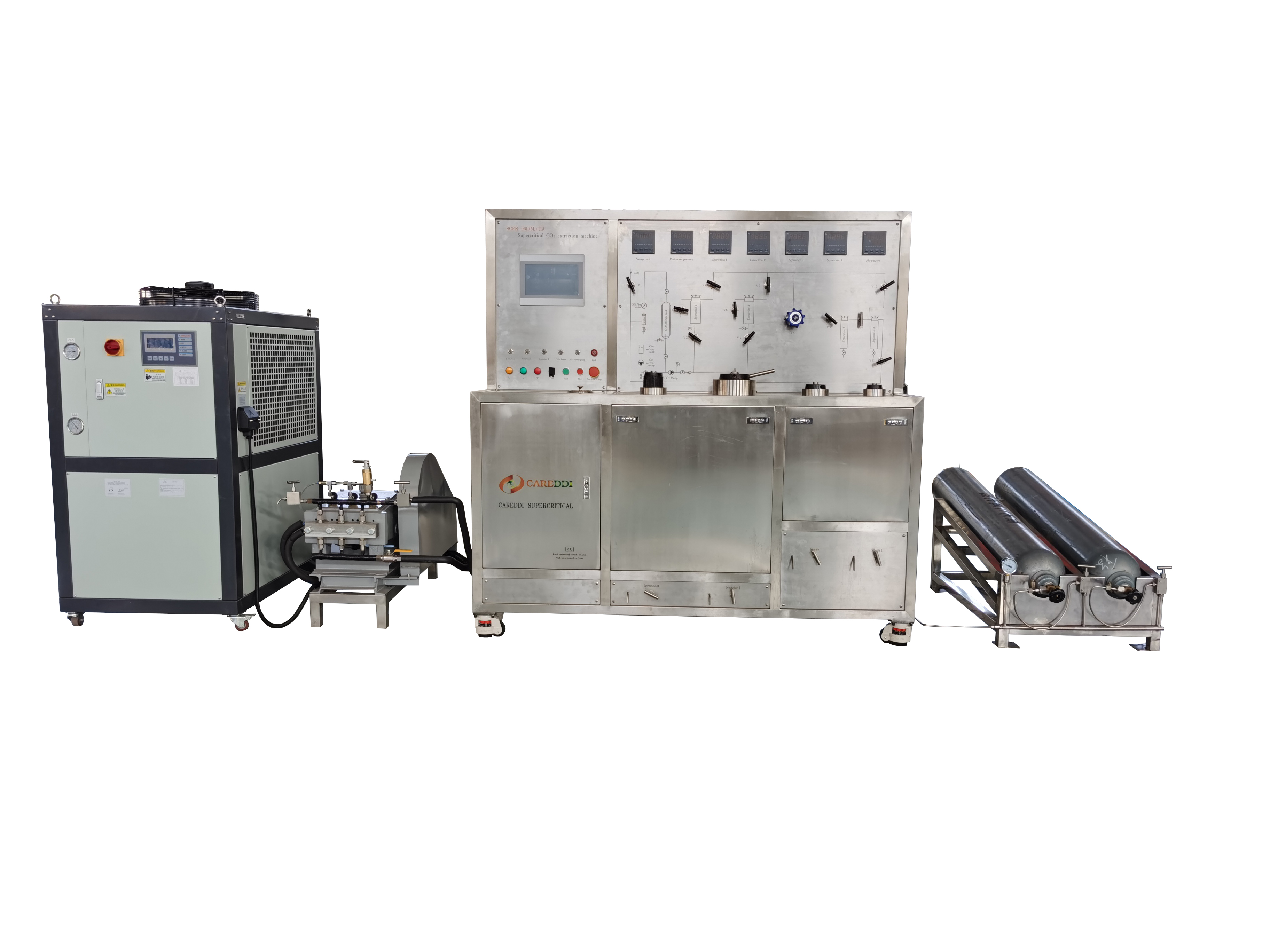

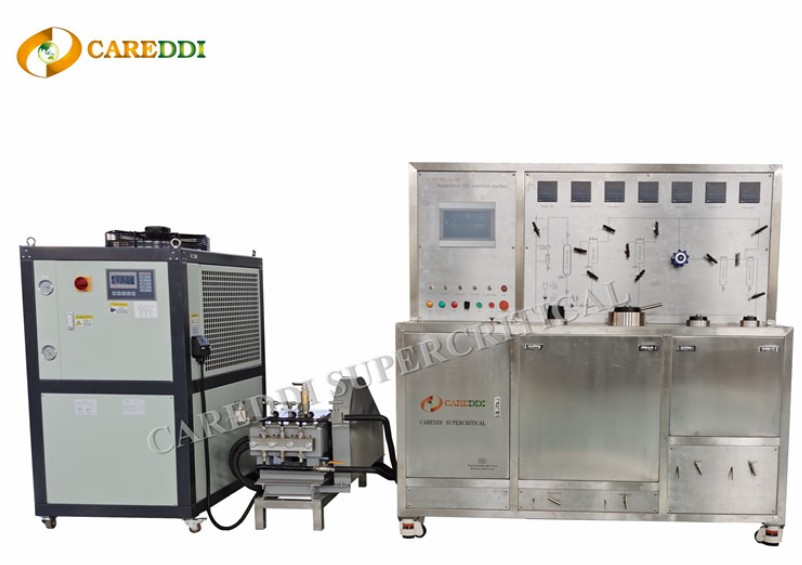

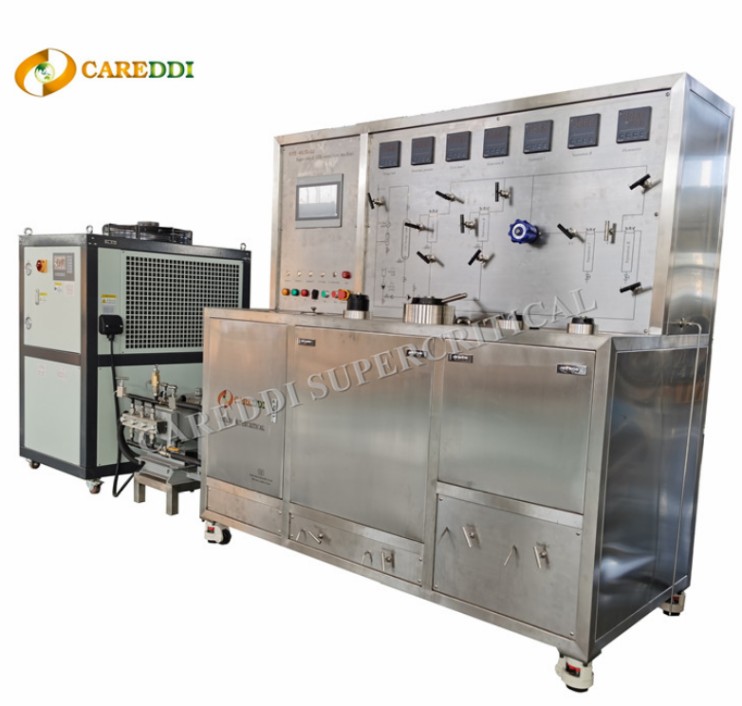

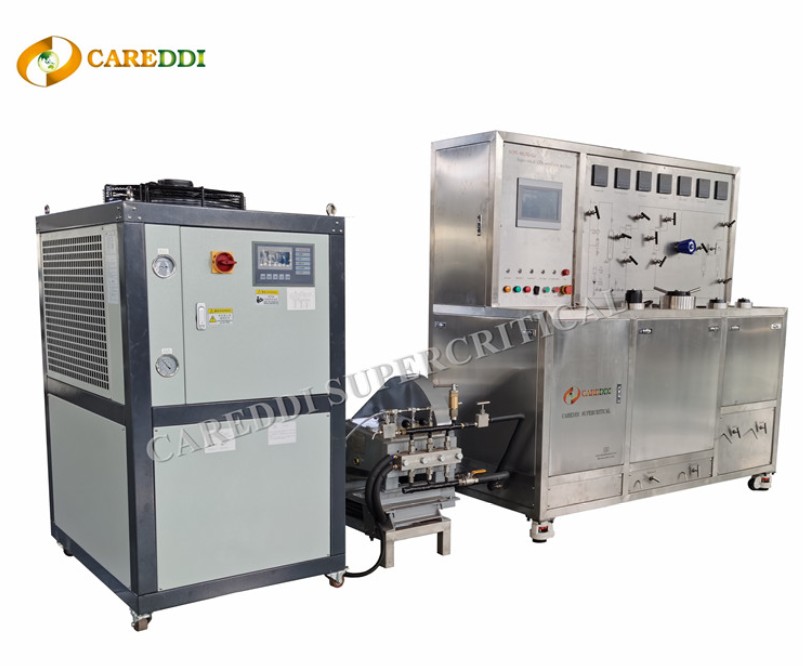

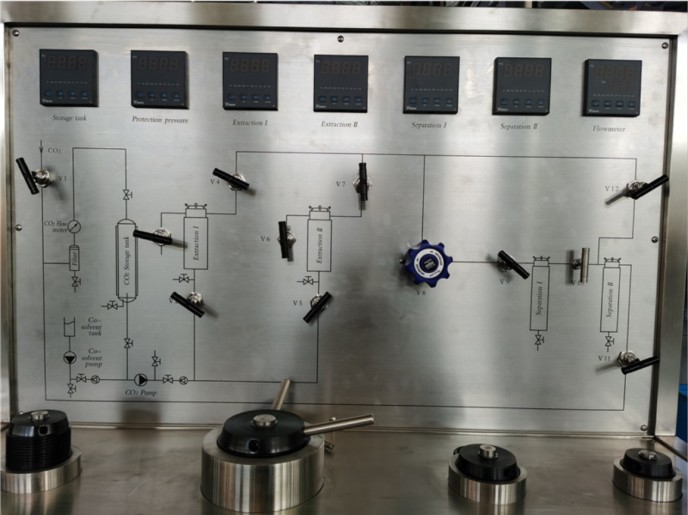

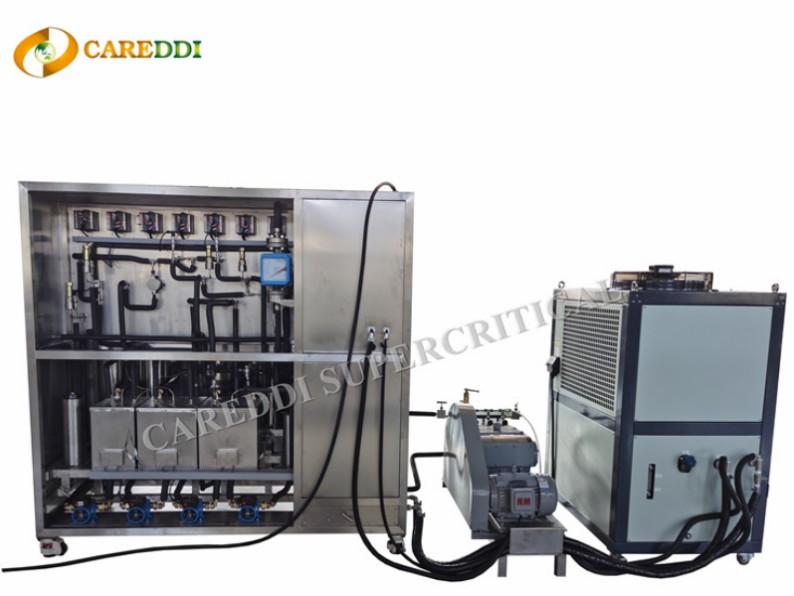

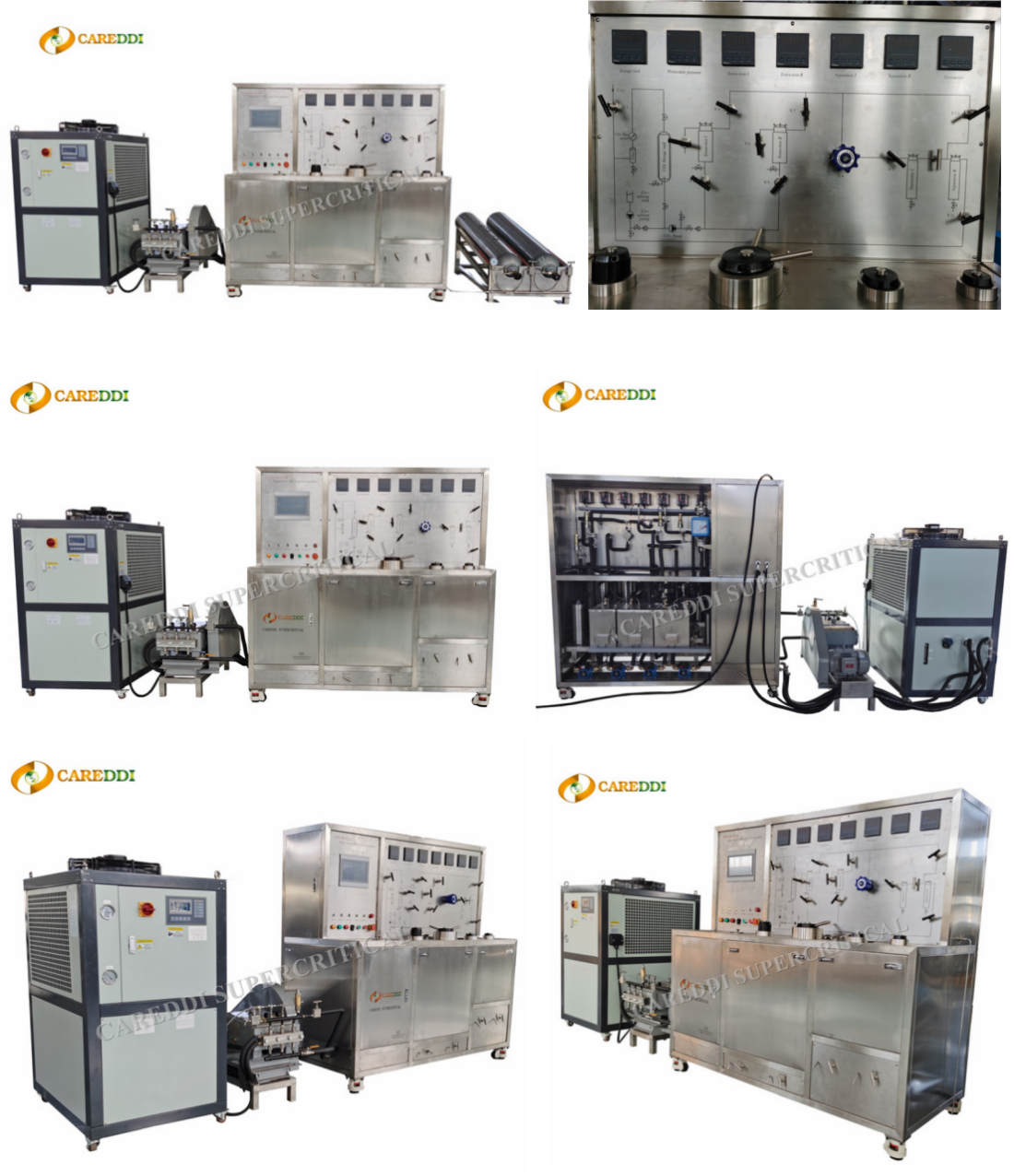

CAREDDI Supercritical CO2 Extraction Machine 6L(5+1L) Model

Sn.

Name

Specification

QTY

1

Extraction vessel

Volume: 5L+1L

Design pressure: 50MPa       Maximum work pressure: 45MPa,

Design temperature: 85℃      Maximum work temperature: 80℃

Material: Stainless steel 304

Equipped with jacket water circling heating system, temperature adjustable.

2

2

Separation 1

Volume: 2.5L

Design pressure: 25MPa       Maximum work pressure: 20MPa,

Design temperature: 85℃      Maximum work temperature: 80℃

Material: Stainless steel 304

Equipped with jacket water circling heating system, temperature adjustable.

1

3

Separation 2

Volume: 1L

Design pressure: 25MPa       Maximum work pressure: 20MPa,

Design temperature: 85℃      Maximum work temperature: 80℃

Material: Stainless steel 304

Equipped with jacket water circling heating system, temperature adjustable.

1

4

cylinders

Material: Stainless steel 304 (SS316 optional if needed)

Load of extraction raw materials

2

5

CO2 high pressure pump

Triple plunger pump, 50L/h (frequency adjustable)

To deliver CO2 into the system and increase the pressure

1

6

Co-solvent pump

1-4L/h, to pump co-solvent into system

1

7

Water pumps

To pump water in tank into vessel jacket and circulated

sets

8

Chiller

Chilling gaseous CO2 into liquid CO2 and cool the main pump head

1

9

Heat exchange system

Material: 304 stainless steel, design pressure 50Mpa

3

10

Filter

Material: stainless steel 304

Volume: 1L     Design pressure:20Mpa

1

11

Mixer

Material: stainless steel 304

Volume: 0.5L     Design pressure:50Mpa

1

12

CO2 Storage Tank

Material: Stainless steel 304

Volume: 9L,  Maximum working pressure does not exceed 16MPa

1

13

CO2 Cylinder rack

Material: Stainless steel 304 , vertical or horizontal

1

14

Flow Meter

Flow range: 0-60L/h (Display instantaneous flow)

1

15

Temperature control system

Temperature control range: room temperature ~ 85℃ adjustable

Temperature control accuracy: ±1℃

16

Safety protection system

Extraction vessel, separation vessels, CO2 high pressure pump, storage tank are equipped with safety valves to prevent system overpressure.

17

Pipeline valves

High pressure pipelines and valves, process water valves and pipelines, check valves, back pressure valves

18

Equipment bracket

Material: Stainless steel 304

1

19

Data acquisition and control system

Touch screen, control extraction and separation temperatures, start and stop of CO2 high pressure pump and co-solvent pump, data storage and output.

1
